CCIE Security Lab: ASA to IOS IKEv1 tunnel


In the first part of the new VPN topology, I will be looking at connecting up the lower left-hand side routers, using a mix of static routes and OSPF to get them talking, and then setting up an IPSec VPN between the ASA and DMVPN-Hub2.

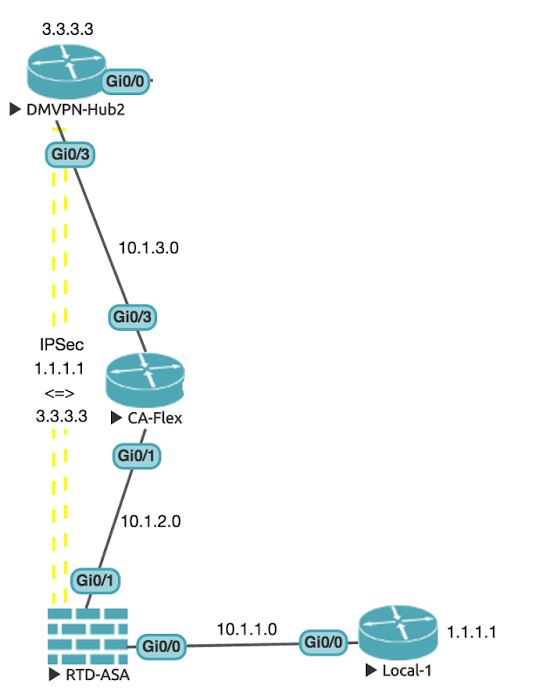

Cisco ASA to IOS IPSec VPNs

We will start with the basic connectivity. Using static routing to send all of Local-1's traffic to the ASA, and then OSPF to bridge the rest of the network.

You can find most of the steps in the link for ASA to IOS IKEv1.

Basic OSPF

The OSPf setup here is nothing special, everything is going into Area 0:
RTD-ASA# sh int ip bri | e unas
Interface                  IP-Address      OK? Method Status                Protocol
GigabitEthernet0/0         10.1.1.254      YES manual up                    up
GigabitEthernet0/1         10.1.2.254      YES manual up                    up
RTD-ASA#

Local-1#sh ip int bri | e unas
Interface                  IP-Address      OK? Method Status                Protocol
GigabitEthernet0/0         10.1.1.1        YES manual up                    up
Loopback0                  1.1.1.1         YES manual up                    up
Local-1#

Local-1(config)#ip route 0.0.0.0 0.0.0.0 10.1.1.254
Local-1(config)#


RTD-ASA(config)# route inside 1.1.1.1 255.255.255.255 10.1.1.1
RTD-ASA(config)#
RTD-ASA(config)# router ospf 1
RTD-ASA(config-router)# network 10.1.2.0 255.255.255.0 area 0
RTD-ASA(config-router)# red static subnets
RTD-ASA(config-router)#

CA-Flex(config)#do sh ip int bri | e unas
Interface                  IP-Address      OK? Method Status                Protocol
GigabitEthernet0/1         10.1.2.2        YES manual up                    up
GigabitEthernet0/3         10.1.3.2        YES manual up                    up
Loopback0                  2.2.2.2         YES manual up                    up

CA-Flex(config)#router ospf 1
CA-Flex(config-router)#router-id 2.2.2.2
CA-Flex(config-router)#network 10.1.2.0 0.255.255.255 area 0
CA-Flex(config-router)#
CA-Flex(config-router)#network 10.1.3.0 0.255.255.255 area 0
CA-Flex(config-router)#

DMVPN-Hub2(config)#do sh ip int bri | e unas
Interface                  IP-Address      OK? Method Status                Protocol
GigabitEthernet0/0         10.1.5.3        YES manual up                    up
GigabitEthernet0/3         10.1.3.3        YES manual up                    up
Loopback0                  3.3.3.3         YES manual up                    up

DMVPN-Hub2(config)#router ospf 1
DMVPN-Hub2(config-router)#router-id 3.3.3.3
DMVPN-Hub2(config-router)#network 10.1.3.0 0.255.255.255 area 0
DMVPN-Hub2(config-router)#
%OSPF-5-ADJCHG: Process 1, Nbr 2.2.2.2 on GigabitEthernet0/3 from LOADING to FULL, Loading Done
DMVPN-Hub2(config-router)#
Now that we have this done, we can set up the VPN tunnel.

IKEv1 IPSec tunnel between ASA and IOS

Now we set up the VPN tunnel. It won't work straight away, and this is (partially) intentional. I need to be hot on the debugging of VPN failures for the exam, that said, I don't want to spend too much time troubleshooting in the lab!

The first step is to create the access lists to define our interesting traffic:
RTD-ASA(config)# access-list IPSec-VPN-Traffic extended permit ip host 1.1.1.1 host 3.3.3.3

DMVPN-Hub2(config)#access-list 101 permit ip host 3.3.3.3 host 1.1.1.1
DMVPN-Hub2(config)#
We then create the ISAKMP policy:
RTD-ASA(config)# crypto isakmp policy 10
RTD-ASA(config-ikev1-policy)# encryption 3des
RTD-ASA(config-ikev1-policy)# auth pre-share
RTD-ASA(config-ikev1-policy)# group 2
RTD-ASA(config-ikev1-policy)#

DMVPN-Hub2(config)#crypto isakmp policy 10
DMVPN-Hub2(config-isakmp)#encr 3des
DMVPN-Hub2(config-isakmp)#auth pre-share
DMVPN-Hub2(config-isakmp)#group 2
DMVPN-Hub2(config-isakmp)#
Next we create the transform set
RTD-ASA(config)# crypto ipsec transform-set VPN-transforms esp-3des esp-sha-hmac
RTD-ASA(config)#

DMVPN-Hub2(config)#crypto ipsec transform-set VPN-transforms esp-3des esp-sha-hmac
DMVPN-Hub2(cfg-crypto-trans)#exit
DMVPN-Hub2(config)#
Then we create the crypto maps (defining our peers, and utilizing the transform set created earlier):
RTD-ASA(config)# crypto map VPN_Map 1 set peer 10.1.3.3
RTD-ASA(config)# crypto map VPN_Map 1 set ikev1 transform-set VPN-transforms
RTD-ASA(config)# crypto map VPN_Map 1 set ikev2 pre-shared-key cisco
RTD-ASA(config)# crypto map VPN_Map 1 match address IPSec-VPN-Traffic
RTD-ASA(config)#
RTD-ASA(config)# crypto map VPN_Map interface Outside
RTD-ASA(config)#
RTD-ASA(config)# tunnel-group 10.1.3.3 type ipsec-l2l
RTD-ASA(config)# tunnel-group 10.1.3.3 ipsec-attributes
RTD-ASA(config-tunnel-ipsec)# ikev1 pre-shared-key cisco
RTD-ASA(config-tunnel-ipsec)#

DMVPN-Hub2(config)#crypto keyring VPN_Keys
DMVPN-Hub2(conf-keyring)#pre-shared-key address 10.1.2.254 key cisco
DMVPN-Hub2(conf-keyring)#exit
DMVPN-Hub2(config)#
DMVPN-Hub2(config)#crypto isakmp profile VPN_Map
% A profile is deemed incomplete until it has match identity statements
DMVPN-Hub2(conf-isa-prof)#match identity address 10.1.2.254 255.255.255.255
DMVPN-Hub2(conf-isa-prof)#keyring VPN_Keys
DMVPN-Hub2(conf-isa-prof)#exit
DMVPN-Hub2(config)#
DMVPN-Hub2(config)#crypto map VPN_Map 1 ipsec-isakmp
% NOTE: This new crypto map will remain disabled until a peer
        and a valid access list have been configured.
DMVPN-Hub2(config-crypto-map)#set peer 10.1.2.254
DMVPN-Hub2(config-crypto-map)#set transform-set VPN-transforms
DMVPN-Hub2(config-crypto-map)#set isakmp-profile VPN_Map
DMVPN-Hub2(config-crypto-map)#match address 101
DMVPN-Hub2(config-crypto-map)#int gi 0/3
DMVPN-Hub2(config-if)#crypto map VPN_Map
DMVPN-Hub2(config-if)#
*Jun 26 07:59:10.158: %CRYPTO-6-ISAKMP_ON_OFF: ISAKMP is ON
DMVPN-Hub2(config-if)#
As it stands, we can bring up the tunnel by pinging 1.1.1.1 from DMVPN-Hub2 by setting the source as lo0:
DMVPN-Hub2#ping 1.1.1.1 so lo0
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 1.1.1.1, timeout is 2 seconds:
Packet sent with a source address of 3.3.3.3
.....
Success rate is 0 percent (0/5)
DMVPN-Hub2#

RTD-ASA# sh crypto isakmp sa

IKEv1 SAs:

   Active SA: 1
    Rekey SA: 0 (A tunnel will report 1 Active and 1 Rekey SA during rekey)
Total IKE SA: 1

1   IKE Peer: 10.1.3.3
    Type    : L2L             Role    : responder
    Rekey   : no              State   : MM_ACTIVE

There are no IKEv2 SAs
RTD-ASA#

DMVPN-Hub2#sh crypto isakmp sa
IPv4 Crypto ISAKMP SA
dst             src             state          conn-id status
10.1.2.254      10.1.3.3        QM_IDLE           1001 ACTIVE

IPv6 Crypto ISAKMP SA

DMVPN-Hub2#
We have the right details above. The ASA should show MM_ACTIVE, and the IOS route should show "QM_IDLE". We will not get a response yet as RTD-ASA is not set up yet. We still need to set up NAT, and a NAT exemption for the 1.1.1.1 address.

We do want to NAT the 10.1.1.1 subnet, but not the 1.1.1.1 subnet, so let's set that up as well.

We start by creating three objects, one for the network we will want to NAT (10.1.1.0/24), one for the host we do not want to NAT for internally (1.1.1.1) and one for the host we will not want to NAT for externally (3.3.3.3):
RTD-ASA(config)# object network Nat-Networks
RTD-ASA(config-network-object)# subnet 10.1.1.0 255.255.255.0
RTD-ASA(config-network-object)# exit
RTD-ASA(config)# object network No-Nat-Networks
RTD-ASA(config-network-object)# host 1.1.1.1
RTD-ASA(config-network-object)# exit
RTD-ASA(config)# object network No-Nat-Destination
RTD-ASA(config-network-object)# host 3.3.3.3
RTD-ASA(config-network-object)# exit
The we can use these objects in the NAT rule:
RTD-ASA(config)# terminal width 255
RTD-ASA(config)# nat (inside,outside) source static No-Nat-Networks No-Nat-Networks destination static No-Nat-Destination No-Nat-Destination no-proxy-arp route-lookup
RTD-ASA(config)#
Does it work now?
Local-1#ping 3.3.3.3 so lo0
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 3.3.3.3, timeout is 2 seconds:
Packet sent with a source address of 1.1.1.1
.....
Success rate is 0 percent (0/5)
Local-1#
Not so far. Let's dig in:
RTD-ASA# sh crypto ipsec sa
interface: Outside
    Crypto map tag: VPN_Map, seq num: 1, local addr: 10.1.2.254

      access-list IPSec-VPN-Traffic extended permit ip host 1.1.1.1 host 3.3.3.3
      local ident (addr/mask/prot/port): (1.1.1.1/255.255.255.255/0/0)
      remote ident (addr/mask/prot/port): (3.3.3.3/255.255.255.255/0/0)
      current_peer: 10.1.3.3


      #pkts encaps: 0, #pkts encrypt: 0, #pkts digest: 0 <== Nothing being transmitted!
      #pkts decaps: 14, #pkts decrypt: 14, #pkts verify: 14
      #pkts compressed: 0, #pkts decompressed: 0
      #pkts not compressed: 0, #pkts comp failed: 0, #pkts decomp failed: 0
      #pre-frag successes: 0, #pre-frag failures: 0, #fragments created: 0
      #PMTUs sent: 0, #PMTUs rcvd: 0, #decapsulated frgs needing reassembly: 0
      #TFC rcvd: 0, #TFC sent: 0
      #Valid ICMP Errors rcvd: 0, #Invalid ICMP Errors rcvd: 0
      #send errors: 0, #recv errors: 0

      local crypto endpt.: 10.1.2.254/0, remote crypto endpt.: 10.1.3.3/0
      path mtu 1500, ipsec overhead 58(36), media mtu 1500
      PMTU time remaining (sec): 0, DF policy: copy-df
      ICMP error validation: disabled, TFC packets: disabled
      current outbound spi: 45623476
      current inbound spi : 26AD8AD7

    inbound esp sas:
      spi: 0x26AD8AD7 (648907479)
         transform: esp-3des esp-sha-hmac no compression
         in use settings ={L2L, Tunnel, IKEv1, }
         slot: 0, conn_id: 8192, crypto-map: VPN_Map
         sa timing: remaining key lifetime (kB/sec): (3914998/2623)
         IV size: 8 bytes
         replay detection support: Y
         Anti replay bitmap:
          0x00000000 0x00007FFF
    outbound esp sas:
      spi: 0x45623476 (1164063862)
         transform: esp-3des esp-sha-hmac no compression
         in use settings ={L2L, Tunnel, IKEv1, }
         slot: 0, conn_id: 8192, crypto-map: VPN_Map
         sa timing: remaining key lifetime (kB/sec): (3915000/2622)
         IV size: 8 bytes
         replay detection support: Y
         Anti replay bitmap:
          0x00000000 0x00000001

RTD-ASA#
We are not transmitting any packets. Why is this?
RTD-ASA(config)# logging console 7
RTD-ASA(config)# logging on
%ASA-5-111008: User 'enable_15' executed the 'logging on' command.
RTD-ASA(config)#
%ASA-5-111010: User 'enable_15', running 'CLI' from IP 0.0.0.0, executed 'logging on'
%ASA-7-609001: Built local-host Outside:3.3.3.3
%ASA-7-609001: Built local-host Inside:1.1.1.1
%ASA-6-302020: Built inbound ICMP connection for faddr 3.3.3.3/4 gaddr 1.1.1.1/0 laddr 1.1.1.1/0
%ASA-6-110002: Failed to locate egress interface for ICMP from Inside:1.1.1.1/0 to 3.3.3.3/4
%ASA-6-302021: Teardown ICMP connection for faddr 3.3.3.3/4 gaddr 1.1.1.1/0 laddr 1.1.1.1/0
%ASA-7-609002: Teardown local-host Outside:3.3.3.3 duration 0:00:10
%ASA-7-609002: Teardown local-host Inside:1.1.1.1 duration 0:00:10
The clue here is "Failed to locate egress interface", meaning we do not have a route to the destination. Let's add one, and see if this solves the issue:
DMVPN-Hub2(config)#router ospf 1
DMVPN-Hub2(config-router)#network 3.3.3.3 0.0.0.0 area 1
DMVPN-Hub2(config-router)#
Does it work now?
Local-1#ping 3.3.3.3 so lo0
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 3.3.3.3, timeout is 2 seconds:
Packet sent with a source address of 1.1.1.1
.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 9/10/12 ms
Local-1#
It does. We are also encrypting as much traffic as we are decrypting:
RTD-ASA# sh vpn-sessiondb detail l2l

Session Type: LAN-to-LAN Detailed

Connection   : 10.1.3.3
Index        : 3                      IP Addr      : 10.1.3.3
Protocol     : IKEv1 IPsec
Encryption   : IKEv1: (1)3DES  IPsec: (1)3DES
Hashing      : IKEv1: (1)SHA1  IPsec: (1)SHA1
Bytes Tx     : 400                    Bytes Rx     : 400
Login Time   : 21:51:24 UTC Mon Jun 27 2016
Duration     : 0h:01m:27s

IKEv1 Tunnels: 1
IPsec Tunnels: 1

IKEv1:
  Tunnel ID    : 3.1
  UDP Src Port : 500                    UDP Dst Port : 500
  IKE Neg Mode : Main                   Auth Mode    : preSharedKeys
  Encryption   : 3DES                   Hashing      : SHA1
  Rekey Int (T): 86400 Seconds          Rekey Left(T): 86313 Seconds
  D/H Group    : 2
  Filter Name  :

IPsec:
  Tunnel ID    : 3.2
  Local Addr   : 1.1.1.1/255.255.255.255/0/0
  Remote Addr  : 3.3.3.3/255.255.255.255/0/0
  Encryption   : 3DES                   Hashing      : SHA1
  Encapsulation: Tunnel
  Rekey Int (T): 3600 Seconds           Rekey Left(T): 3513 Seconds
  Rekey Int (D): 4608000 K-Bytes        Rekey Left(D): 4608000 K-Bytes
  Idle Time Out: 30 Minutes             Idle TO Left : 28 Minutes
  Bytes Tx     : 400                    Bytes Rx     : 400
  Pkts Tx      : 4                      Pkts Rx      : 4

RTD-ASA#
Perfect! Logging everything on the console probably isn't the best idea, though. On a small-scale like this it's fine, but in a busy production environment, it would be easy to miss important information. In a lab exam, it's fine, just so long as you remember to remove the logging commands that were added. So, do we have a neater method?

Let's remove the route and find out
DMVPN-Hub2(config)#router ospf 1
DMVPN-Hub2(config-router)#no network 3.3.3.3 0.0.0.0 area 1
DMVPN-Hub2(config-router)#

RTD-ASA# sh route | b Gate
Gateway of last resort is not set

S        1.1.1.1 255.255.255.255 [1/0] via 10.1.1.1, Inside
C        10.1.1.0 255.255.255.0 is directly connected, Inside
L        10.1.1.254 255.255.255.255 is directly connected, Inside
C        10.1.2.0 255.255.255.0 is directly connected, Outside
L        10.1.2.254 255.255.255.255 is directly connected, Outside
O        10.1.3.0 255.255.255.0 [110/11] via 10.1.2.2, 1d14h, Outside
O        10.1.5.0 255.255.255.0 [110/12] via 10.1.2.2, 1d14h, Outside

RTD-ASA#
Now, using the packet-tracer command, we can see the error:
RTD-ASA# packet-tracer input Inside icmp 1.1.1.1 8 0 3.3.3.3

Phase: 1
Type: ACCESS-LIST
Subtype:
Result: ALLOW
Config:
Implicit Rule
Additional Information:
MAC Access list

Result:
input-interface: Inside
input-status: up
input-line-status: up
Action: drop
Drop-reason: (no-route) No route to host

RTD-ASA#
We can also append the "detailed" keyword to get more information, but in this case, we just get a more succint output:
RTD-ASA# packet-tracer input Inside icmp 1.1.1.1 8 0 3.3.3.3 detailed

Result:
input-interface: Inside
input-status: up
input-line-status: up
Action: drop
Drop-reason: (no-route) No route to host

RTD-ASA#
So, we can use this command, instead of enabling logging. For the moment, though, we'll just add the route back, and get the connectivity back:
DMVPN-Hub2(config)#router ospf 1
DMVPN-Hub2(config-router)#network 3.3.3.3 0.0.0.0 area 1
DMVPN-Hub2(config-router)#

Local-1#ping 3.3.3.3 so lo0
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 3.3.3.3, timeout is 2 seconds:
Packet sent with a source address of 1.1.1.1
.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 9/9/10 ms
Local-1#
Throughout this post, when we have looked at the output of "show crypto isakmp sa" we have been told that "There are no IKEv2 SAs". In the next post we will set up IKEv2.

CCIE #49337, author of CCNA and Beyond, BGP for Cisco Networks, MPLS for Cisco Networks, VPNs and NAT for Cisco Networks.

Related Posts

Previous
Next Post »
