CCIE Security Lab: ISE-cold! (Part two).


There are some people around who, through the magic of modern technology (Twitter), put my studying efforts to shame. To name a couple we have @seawanderer, @darby_weaver, and @mzStanikzai. I see them working hard, and quite frankly it's putting my build up the CCIE Security lab to shame.

But, thanks to them, it's given me a newfound impetus to up my game. I won't be filling my study with racks of equipment, like Mr. Weaver (because the long-haired boss would do her nut), but certainly, it's given me a well-needed kick up the arse. Besides, I'd much rather be reading about ISE, than watching Sharkboy and Lavagirl. They say you are never fully prepared for fatherhood, but so far it's been a breeze compared to watching that monstrosity of a film. I can only imagine that the meetings for the film went something like this:

Meeting 1:
Executive: So, "Sharkboy and Lavagirl"? Were you smoking crack when you came up with this?
Writer: Yes
Executive: Pass me some. I'm going to need it if I am going to get this crap passed by finance.

Meeting 2:
Writer: We are 65% done, need to finish off the last 35%
Executive: Fill the rest with shitty puns, no one will notice.
Writer: I'll go do a shit-load more drugs and come up with something.

Meeting 3:
Executive: We only managed to finish 25% of it with puns, we still need something for the last 10%
Other executive: Let's make it 3D, no one will care that the rest of it sucks balls.
Executive (hitting crack pipe): I thought it was 3D already...

For all the benefits of Amazon prime, there are some downsides.

Anyway, it's game on and I will make ISE my bitch this week.

sharkboy-bitch

So, we need a game plan, otherwise it's just me bungling through it, hoping for best. This is what I have come up with so far:

1: Set up AD server (again, had password issues, so have rebuilt it)
2: Install certificate services - ISE will need these, and join to AD.
3: Set up the 3750X switch for Radius auth to ISE
4: Set up the WLC for Radius auth to ISE
5: Test it, tweak it
6: Drink.

Number 1 was easy enough, but number 2 provided some issues:

microsoft-ca-on-dc-issues

It's something about having the CA on the DC. But this can be got around by running the command "certreq -submit -attrib certificatetemplate:webserver" and browsing for ht PEM file created by the ISE.

Anyway, once that was all sorted, and I installed Firefox to get around some knock-on issues, I could move forward and connect the ISE node to AD. By "connect the ISE node to AD" I do of course mean google the myriad of errors that come up, and swear a lot. Some of this was my fault - I fat-fingered the domain name, and then had to sort out issues with NTP (clock skew). It's been a few hours and I still have not gotten very far. This would be far easier in a "proper" environment, there are just too many variables when working in an all-virtualized environment, using devices you have had to beg, borrow and steal. But there you go. Such is life. I am sure that when it is all working, it'll all be fine.

Someone tell me it'll all be fine... Or just to man-up and get on with it...

I think whilst ISE does it's umpteenth reboot it's time to go and finish off the rest of yesterdays home-made lasagna. When not being frustrated at the CCIE Security track, I am a pretty decent cook. Though I did make a Thai prawn red curry the other day that was a little too hot for my liking. The wife loved it, but then she spent three years in Thailand, so is used to having food that hot.

Before stepping off for some food, I thought I'd give it one last go, hoping that fixing the NTP server issue, things might magically work... and the did:

connecting Cisco ISE to Microsoft AD

I do like a green tick box icon!

connecting Cisco ISE to Microsoft AD

Now we are getting somewhere! But I really am off for some food now.

2 days later...

So the good news is that since getting the ISE AD-integrated, it has been much more stable. I have got flash loaded onto the Firefox, and the ISE looks good. I wouldn't say perfect, as something does look like it goes to sleep, I have to ping the local address on SW4 (192.168.90.4) before ISE can talk to the AD server (10.1.4.100). It could be an image issue, it could be UNetLab or ESXi saving resources... not sure, but I think I can live with it for the moment. The management PC has now been moved to the same VLAN, and that has no issue getting to the ISE. I have changed the default gateway on the ISE server to be the VIF on SW4, so maybe that will improve things.

So, let's start trying to get the switch to talk to ISE.

We begin by adding a Network Device Group and Location

Add network device group to ISE

ISE network device groups

ISE network device groups

Adding a location is pretty similar

ISE add location

Next we can add the switch:

Adding a switch to Cisco ISE

Setting the Shared Secret to Radius123:
ISE Radius shared secret

Configuration-wise, we'll start with the old commands, and then see that thse are deprecated, and use the new format:
3750X(config)#aaa new-model
3750X(config)#line vty 0 4
3750X(config-line)#width 255
3750X(config-line)#exi
3750X(config)#radius-server host 192.168.90.205 auth-port 1812 acct-port 1813 key 0 Radius123
 Warning: The CLI will be deprecated soon
 'radius-server host 192.168.90.205 auth-port 1812 acct-port 1813 key 0 Radius123'
 Please move to 'radius server ' CLI.
3750X(config)#
3750X(config)#no radius-server host 192.168.90.205 auth-port 1812 acct-port 1813 key 0 Radius123
3750X(config)#radius server ISE20
3750X(config-radius-server)#address ipv4 192.168.90.205 auth-port 1812 acct-port 1813
3750X(config-radius-server)#key 0 Radius123
3750X(config-radius-server)#exit
3750X(config)#aaa group server radius ISE
3750X(config-sg-radius)#server name ISE20
3750X(config-sg-radius)#deadtime 15
3750X(config-sg-radius)#
The next step is to direct our logins to the ISE. I have created an account in AD for myself to test with.
3750X(config)#aaa authentication ?
  arap             Set authentication lists for arap.
  attempts         Set the maximum number of authentication attempts
  banner           Message to use when starting login/authentication.
  dot1x            Set authentication lists for IEEE 802.1x.
  enable           Set authentication list for enable.
  eou              Set authentication lists for EAPoUDP
  fail-message     Message to use for failed login/authentication.
  login            Set authentication lists for logins.
  onep             Set authentication lists for ONEP
  password-prompt  Text to use when prompting for a password
  ppp              Set authentication lists for ppp.
  sgbp             Set authentication lists for sgbp.
  suppress         Do not send access request for a specific type of user.
  username-prompt  Text to use when prompting for a username

3750X(config)#aaa authentication dot1x ?
  WORD     Named authentication list (max 31 characters, longer will be rejected).
  default  The default authentication list.

3750X(config)#aaa authentication dot1x default ?
  cache  Use Cached-group
  group  Use Server-group
  local  Use local username authentication.

3750X(config)#aaa authentication dot1x default group ?
  WORD    Server-group name
  ldap    Use list of all LDAP hosts.
  radius  Use list of all Radius hosts.

3750X(config)#aaa authentication dot1x default group ISE ?
  cache  Use Cached-group
  group  Use Server-group
  local  Use local username authentication.


3750X(config)#aaa authentication dot1x default group ISE local ?
  cache  Use Cached-group
  group  Use Server-group


3750X(config)#aaa authentication dot1x default group ISE local
3750X(config)#aaa authorization ?
  auth-proxy           For Authentication Proxy Services
  cache                For AAA cache configuration
  commands             For exec (shell) commands.
  config-commands      For configuration mode commands.
  configuration        For downloading configurations from AAA server
  console              For enabling console authorization
  credential-download  For downloading EAP credential from Local/RADIUS/LDAP
  exec                 For starting an exec (shell).
  multicast            For downloading Multicast configurations from an AAA server
  network              For network services. (PPP, SLIP, ARAP)
  onep                 For ONEP authorization service
  policy-if            For diameter policy interface application.
  prepaid              For diameter prepaid services.
  radius-proxy         For proxying radius packets
  reverse-access       For reverse access connections
  subscriber-service   For iEdge subscriber services (VPDN etc)
  template             Enable template authorization

3750X(config)#aaa authorization network  ?
  WORD     Named authorization list (max 31 characters, longer will be rejected).
  default  The default authorization list.

3750X(config)#aaa authorization network default ?
  cache             Use Cached-group
  group             Use server-group.
  if-authenticated  Succeed if user has authenticated.
  local             Use local database.
  none              No authorization (always succeeds).

3750X(config)#aaa authorization network default group ISE ?
  cache             Use Cached-group
  group             Use server-group.
  if-authenticated  Succeed if user has authenticated.
  local             Use local database.
  none              No authorization (always succeeds).


3750X(config)#aaa authorization network default group ISE local
3750X(config)#aaa accounting ?
  auth-proxy        For authentication proxy events.
  commands          For exec (shell) commands.
  connection        For outbound connections. (telnet, rlogin)
  delay-start       Delay PPP Network start record until peer IP address is known.
  dot1x             For dot1x sessions.
  exec              For starting an exec (shell).
  gigawords         64 bit interface counters to support Radius attributes 52 & 53.
  identity          For identity sessions.
  include           Include attributes in accounting records unconditionally
  jitter            Set jitter parameters for periodic interval
  multicast         For multicast accounting.
  nested            When starting PPP from EXEC, generate NETWORK records before EXEC-STOP record.
  network           For network services. (PPP, SLIP, ARAP)
  redundancy        AAA platform redundancy accounting behavior
  send              Send records to accounting server.
  session-duration  Set the preference for calculating session durations
  suppress          Do not generate accounting records for a specific type of user.
  system            For system events.
  update            Enable accounting update records.
  vrrs              For VRRS accounting.

3750X(config)#aaa accounting dot1x default ?
  start-stop  Record start and stop without waiting

3750X(config)#aaa accounting dot1x default start-stop ?
  broadcast  Use Broadcast for Accounting
  group      Use Server-group

3750X(config)#aaa accounting dot1x default start-stop group ISE
3750X(config)#aaa accounting update periodic 5
3750X(config)#aaa server ?
  radius  Profile for local radius server

3750X(config)#aaa server radius ?
  dynamic-author  Local server profile for RFC 3576 support
  policy-device   Local server profile for RADIUS External Policy Delegation client
  proxy           Local server profile for RADIUS proxy clients
  sesm            Local server profile for a SESM client

3750X(config)#aaa server radius dynamic-author
3750X(config-locsvr-da-radius)#client ?
  Hostname or A.B.C.D  IP address of RADIUS client
  X:X:X:X::X           IPv6 address of RADIUS client

3750X(config-locsvr-da-radius)#client 192.168.90.205 ?
  server-key  Specify a RADIUS client server-key
  vrf         Virtual Routing/Forwarding parameters


3750X(config-locsvr-da-radius)#client 192.168.90.205 server-key Radius123
3750X(config-locsvr-da-radius)#
There are a few ISE-specific commands we need, some attrributes, some "lockdown" - so we make sure that we send requests from the correct source interface, and finally to turn on dot1x:
3750X(config)#radius-server attribute ?
  11           Filter-Id attribute configuration
  188          Num-In-Multilink attribute configuration
  218          Address-Pool attribute
  25           Class attribute
  30           DNIS attribute
  31           Calling Station ID
  32           NAS-Identifier attribute
  4            NAS IP address attribute
  44           Acct-Session-Id attribute
  55           Event-Timestamp attribute
  6            Service-Type attribute
  61           NAS-Port-Type attribute configuration
  66           Tunnel-Client-Endpoint attribute
  67           Tunnel-Server-Endpoint attribute
  69           Tunnel-Password attribute
  77           Connect-Info attribute
  8            Framed IP address attribute
  95           NAS IPv6 address attribute
  list         List of Attribute Types
  nas-port     NAS-Port attribute configuration
  nas-port-id  Nas-Port-Id attribute configuration

3750X(config)#radius-server attribute 6 ?
  mandatory          Enforce Service-Type attribute in Access-Accept
  on-for-login-auth  Send attribute 6 in authentication packet
  support-multiple   Support multiple Service-Type values per Radius profile
  voice              Select the Service-Type value for Voice calls; defaults to 12

3750X(config)#radius-server attribute 6 on-for-login-auth
3750X(config)#radius-server attribute 8 ?
  include-in-access-req  Send attribute 8 in access-req packet

3750X(config)#radius-server attribute 8 include-in-access-req
3750X(config)#radius-server attribute 25 ?
  access-request  Access-Request packet

3750X(config)#radius-server attribute 25 access-request ?
  include  Include attribute

3750X(config)#radius-server attribute 25 access-request include
3750X(config)#
3750X(config)#radius-server vsa ?
  disallow  Forbid certain VSA behaviour
  send      Send vendor-specific attributes in requests

3750X(config)#radius-server vsa send ?
  accounting      Send in accounting requests
  authentication  Send in access requests
  cisco-nas-port  Send cisco-nas-port VSA(2)


3750X(config)#radius-server vsa send accounting
3750X(config)#radius-server vsa send auth
3750X(config)#ip radius source-interface vlan 4
3750X(config)#
3750X(config)#
3750X(config)#dot1x system-auth-control
3750X(config)#
3750X(config)#
There are a lot of attributes, but the important ones are 6, 8 and 25. Attribute 6 is the service type, which is "login" for dot1x, or "call-check" for MAB. 8 includes the IP address of the endpoint device, and 25 includes the class attribute.

Let's fire up the vWLC and see if we can get everything talking...

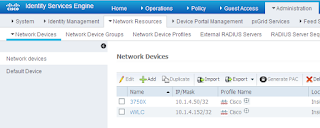

Add vWLC to ISE

Add vWLC to ISE


Add vWLC to ISE


Add vWLC to ISE
Turning to the vWLC:

vWLC integration with ISE - authentication

vWLC integration with ISE - accounting


vWLC integration with ISE - WLAN

vWLC integration with ISE - layer 2

vWLC integration with ISE - layer 3

vWLC integration with ISE - AAA

vWLC integration with ISE - advanced

vWLC integration with ISE - advanced

Unfortunately, the ISE doesn't seem to want to talk to anything:
ISE20/admin# ping 10.1.4.152
PING 10.1.4.152 (10.1.4.152) 56(84) bytes of data.

--- 10.1.4.152 ping statistics ---
4 packets transmitted, 0 received, 100% packet loss, time 32999ms


ISE20/admin# ping 10.1.4.100
PING 10.1.4.100 (10.1.4.100) 56(84) bytes of data.

--- 10.1.4.100 ping statistics ---
4 packets transmitted, 0 received, 100% packet loss, time 33000ms


ISE20/admin# ping 10.1.4.254
PING 10.1.4.254 (10.1.4.254) 56(84) bytes of data.
64 bytes from 10.1.4.254: icmp_seq=1 ttl=255 time=10.2 ms
64 bytes from 10.1.4.254: icmp_seq=2 ttl=255 time=10.3 ms
64 bytes from 10.1.4.254: icmp_seq=3 ttl=255 time=8.31 ms
64 bytes from 10.1.4.254: icmp_seq=4 ttl=255 time=14.3 ms

--- 10.1.4.254 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3019ms
rtt min/avg/max/mdev = 8.318/10.816/14.369/2.206 ms

ISE20/admin# ping 10.1.4.100
PING 10.1.4.100 (10.1.4.100) 56(84) bytes of data.

--- 10.1.4.100 ping statistics ---
4 packets transmitted, 0 received, 100% packet loss, time 33000ms


ISE20/admin#
Well, nothing that it needs to, that is. A bit frustrating! It could be an issue with the image, the vWLC seems to be happy:
(Cisco Controller) >ping 10.1.4.100

Send count=3, Receive count=2 from 10.1.4.100

(Cisco Controller) >ping 10.1.4.100

Send count=3, Receive count=3 from 10.1.4.100

(Cisco Controller) >ping 192.168.90.200

Send count=3, Receive count=3 from 192.168.90.200

(Cisco Controller) >
So..

First plan: Reboot ISE and hope for best.
Second plan: Troubleshoot it a bit.
Third plan: Rebuild using different version (probably 1.4).
Fourth plan, move ISE to ESXi native (and again hope that it works).

I'll be back... New post coming up!

CCIE #49337, author of CCNA and Beyond, BGP for Cisco Networks, MPLS for Cisco Networks, VPNs and NAT for Cisco Networks.

Related Posts

Previous
Next Post »

5 comments

comments
2 June 2016 at 07:24 delete

Very helpful! Please, do some labs/examples using the vWLC with different vlans, dhcp proxy etc. I bought the ap 1602 and I trying to do some progress also. I'm studying for CCNP-Sec and some times to CCNA-Wireless. :)

Reply
avatar
2 June 2016 at 12:19 delete

Will try Marcus. Good luck with the studies!

Reply
avatar
5 June 2016 at 09:10 delete

Excellent work Stuart!

My compliments.

Darby Weaver

Http://www.darbyslogs.blogspot.com

Reply
avatar
